Cashier Counter for Supermarket and Grocery Store
A complete lane in powder coated steel — driven belt, polished stainless worktop and an open packing bay, cut to the lane you have.

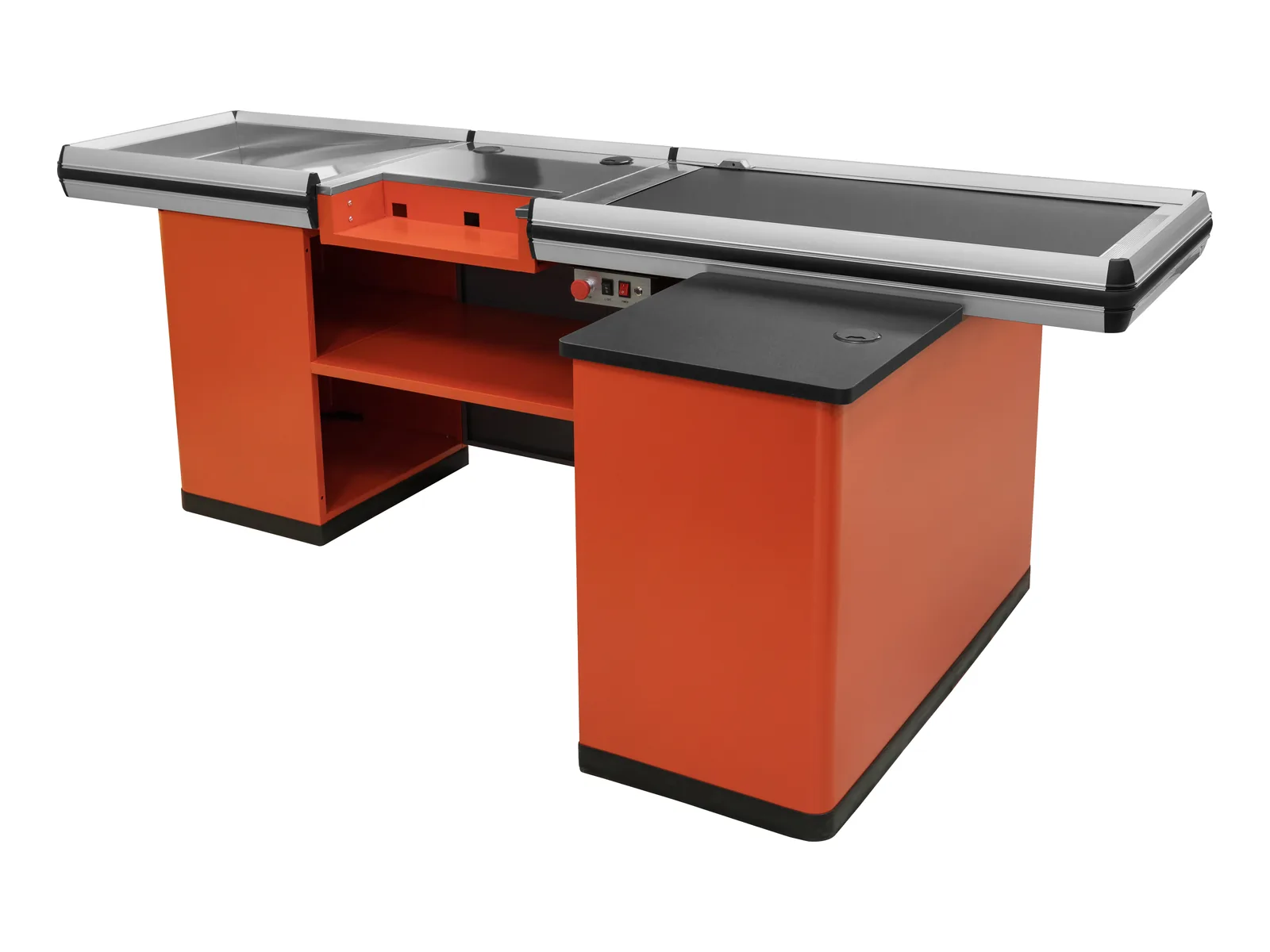

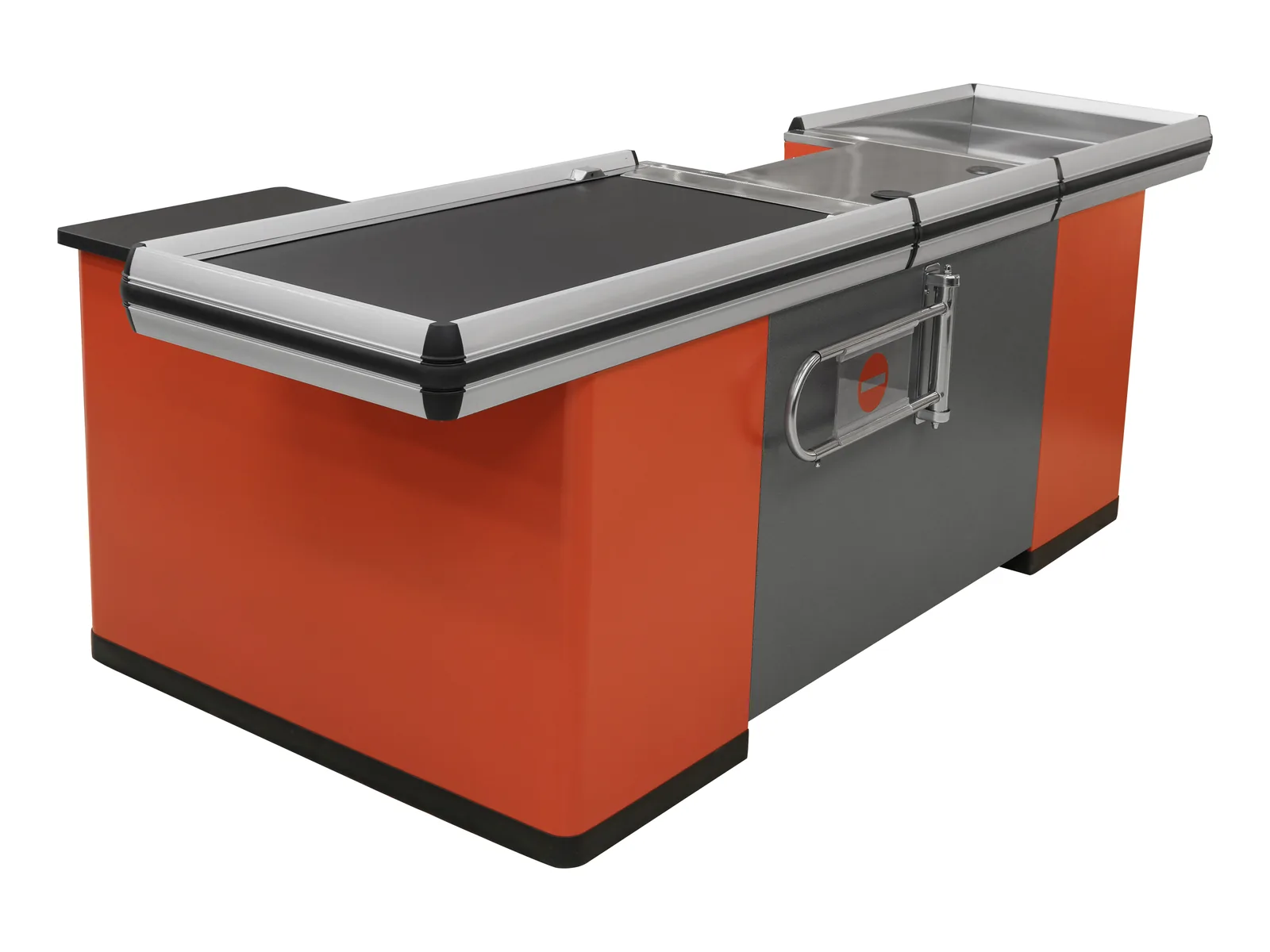

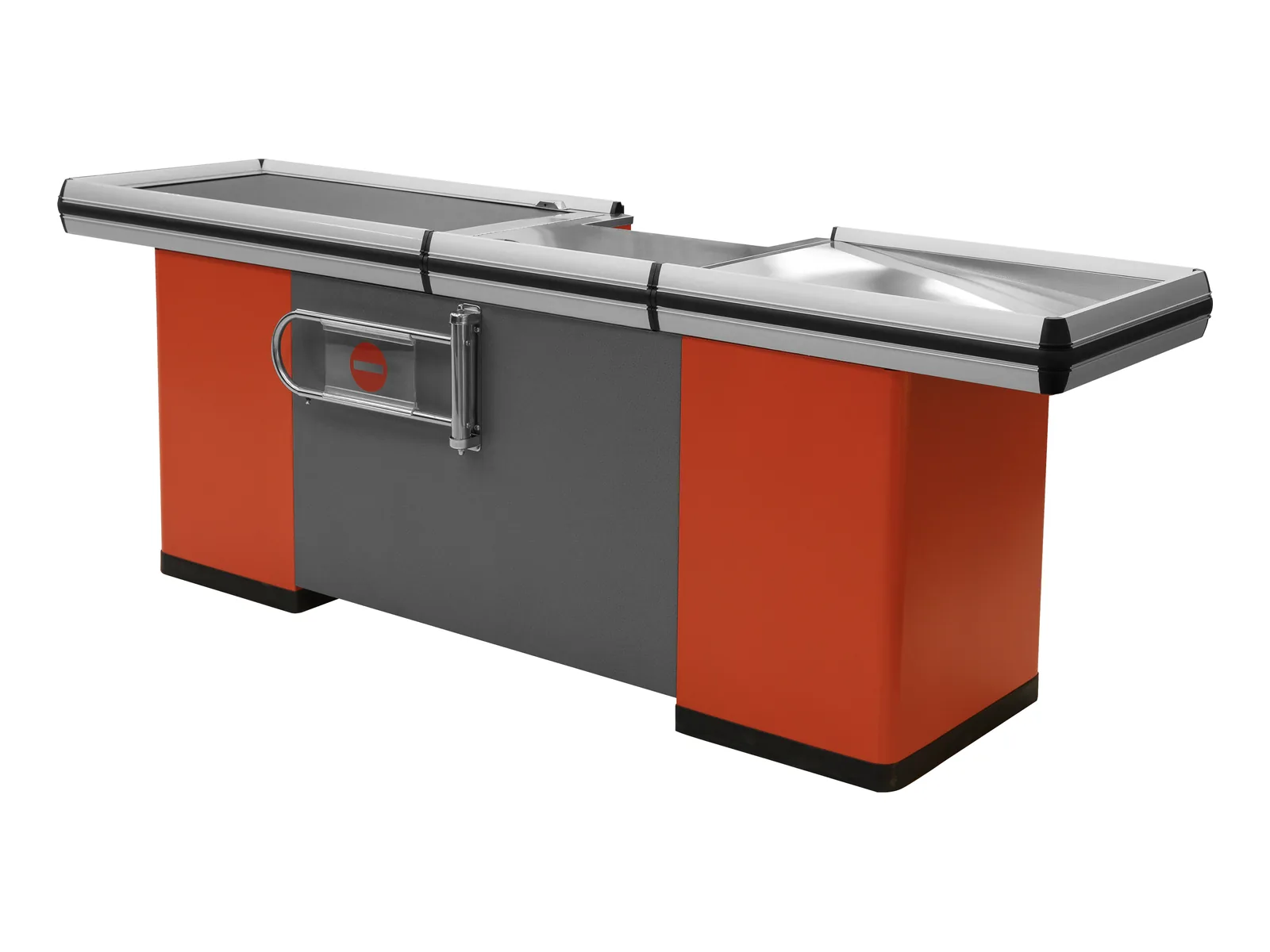

Four studio angles of the same build. No crops and no repeats — every frame is a different camera position.

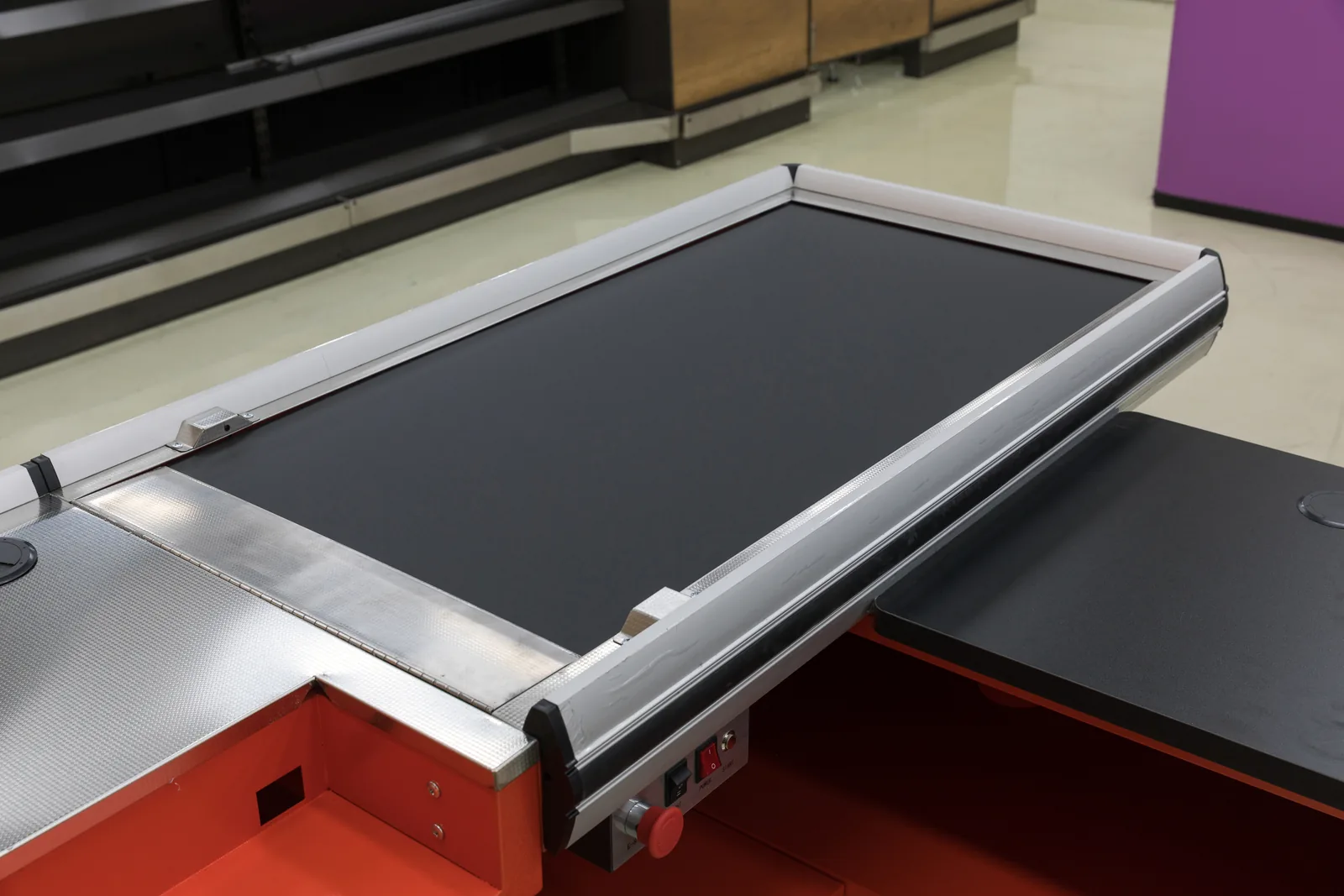

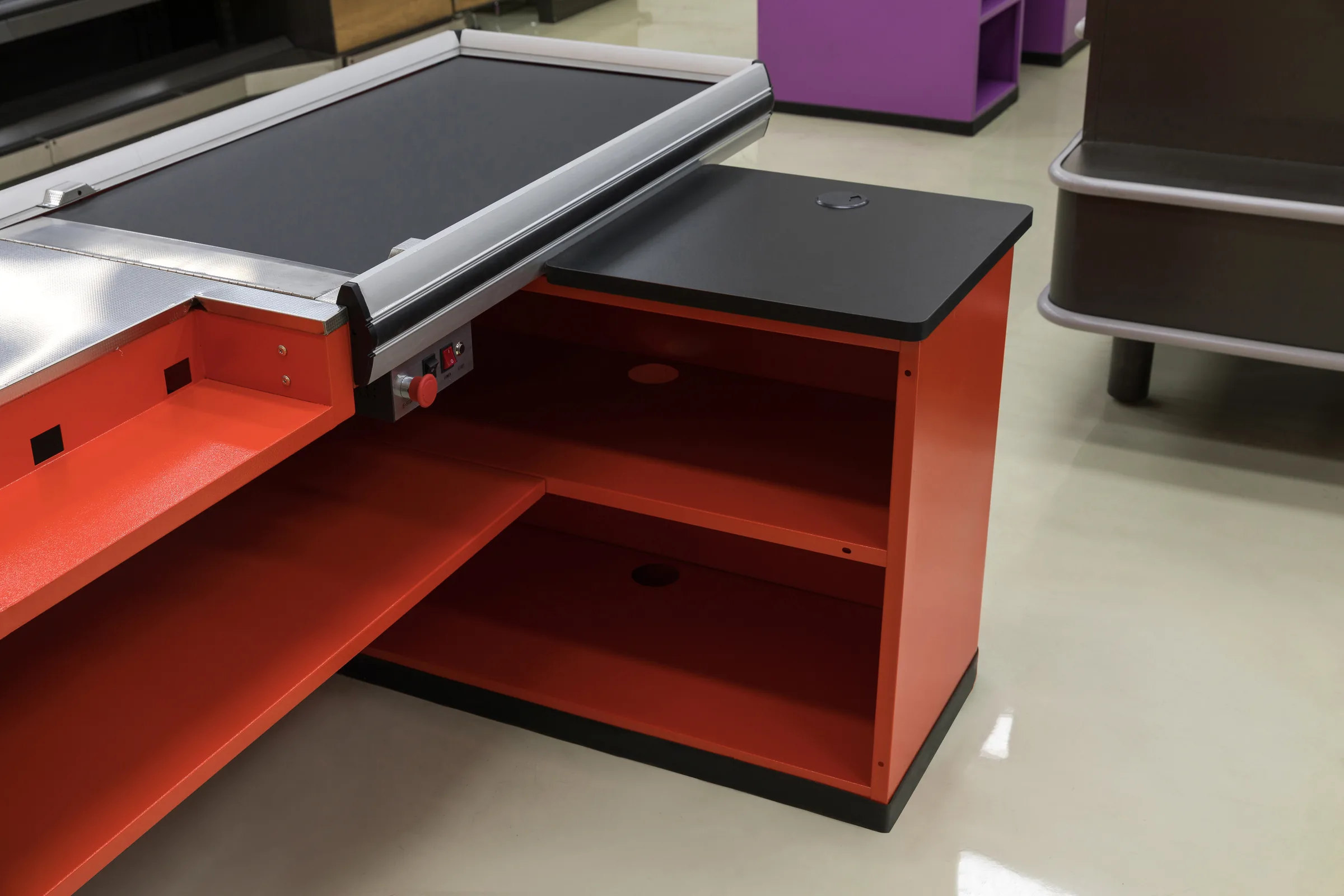

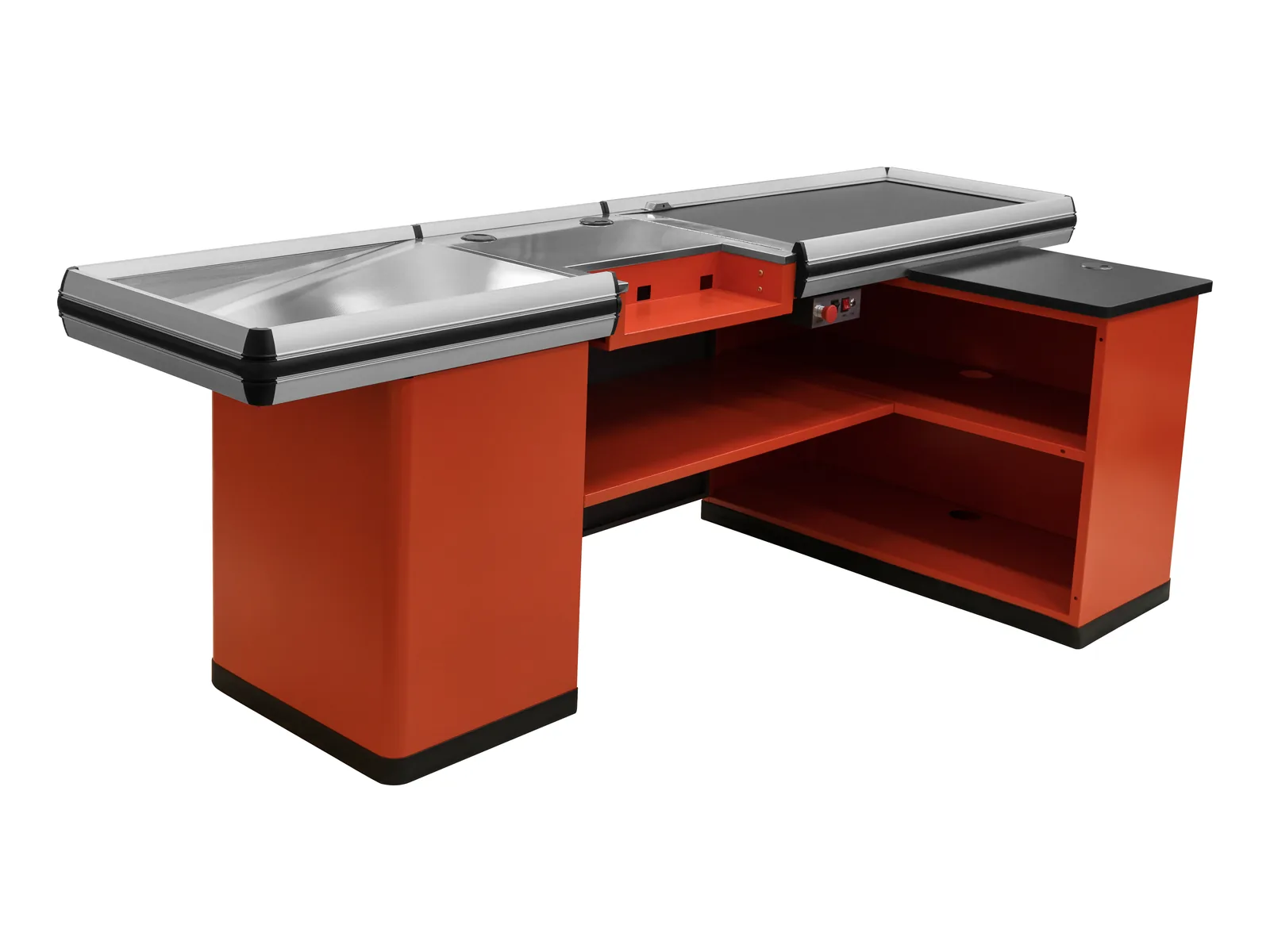

One lane, built as one piece. A driven belt deck takes the goods from the shopper, the cashier position sits mid counter with the belt controls under the front edge of the worktop, and an open packing bay closes the far end where the basket is repacked. Everything above the base is polished stainless steel inside an aluminium alloy border; everything below is cold rolled steel under a powder coat.
These photographs are one build in one colour. The carcase, the belt and the packing bay are the fixed part of this counter. The length, the depth and the colour are not fixed by us — they are fixed by your checkout area, and the table further down says exactly which rows are which.
A complete lane in powder coated steel — driven belt, polished stainless worktop and an open packing bay, cut to the lane you have.
Supermarkets, convenience stores, chain retail and speciality stores. Tell us the store format and the floor area and the specification comes back written against them.
Four parts of this counter you can check in the photographs above — the two that take the daily knocks, and the two that only a belt lane carries.

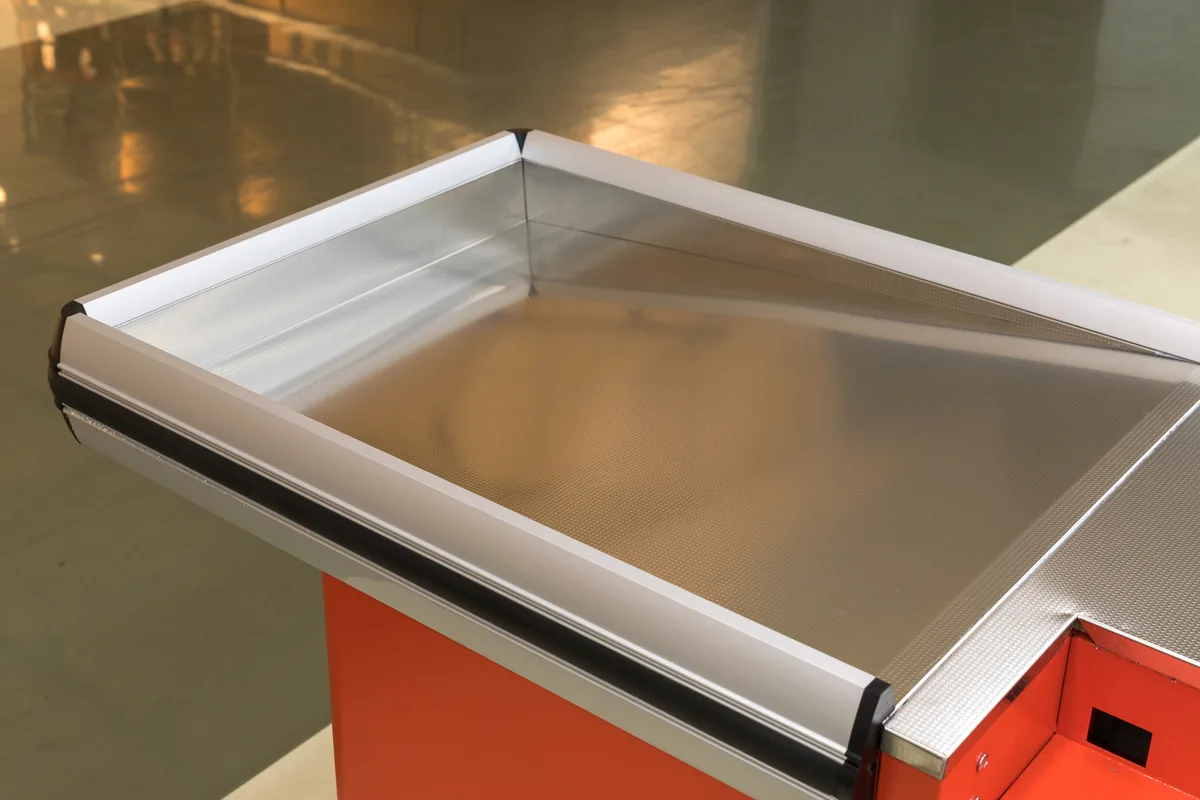

Polished stainless inside an aluminium alloy border
The worktop and the packing pan are one stainless surface held inside an aluminium alloy border. The border is what absorbs the knocks from trolleys and crates, and it is the reason the top edge is still straight after a few thousand baskets have been dragged over it.

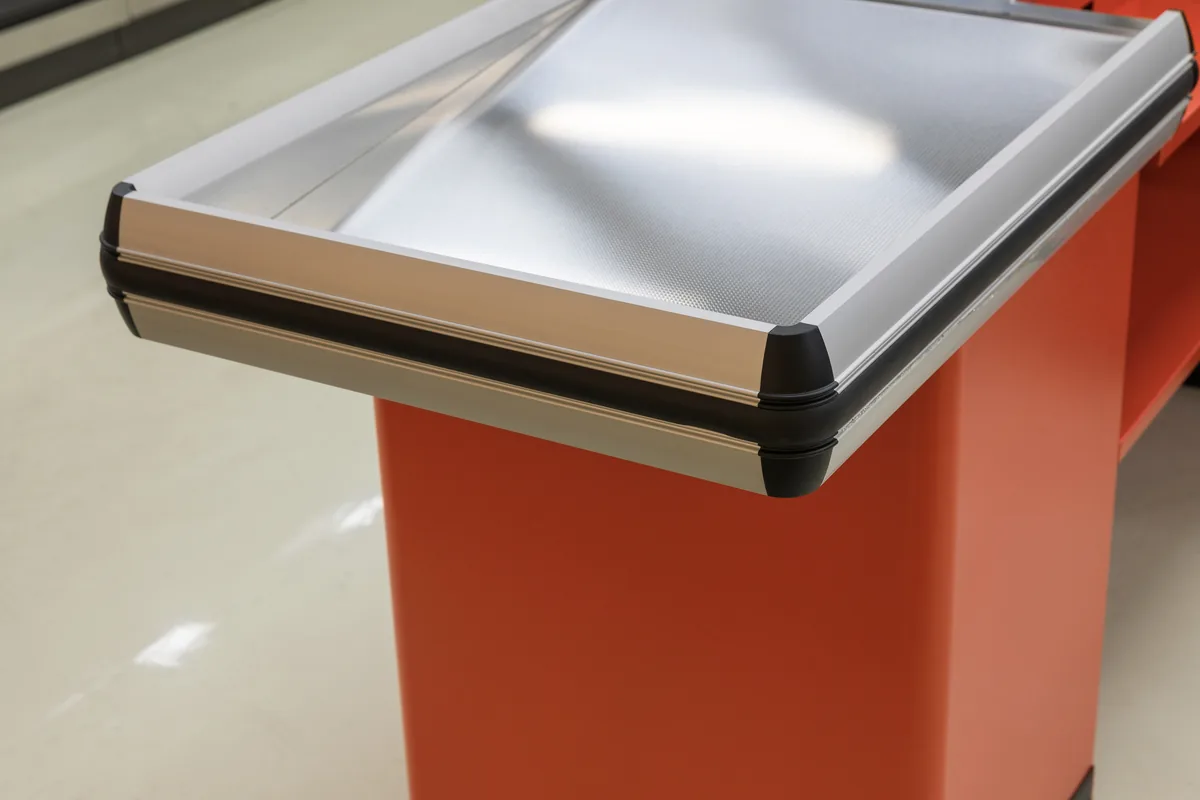

Moulded cap closes the border at each end
Where the border turns the corner it is closed with a moulded cap rather than a mitred joint. A mitre opens up over a few years of trolley traffic; a cap does not, and it takes the sharp edge off the one part of a checkout lane that shoppers actually walk into.

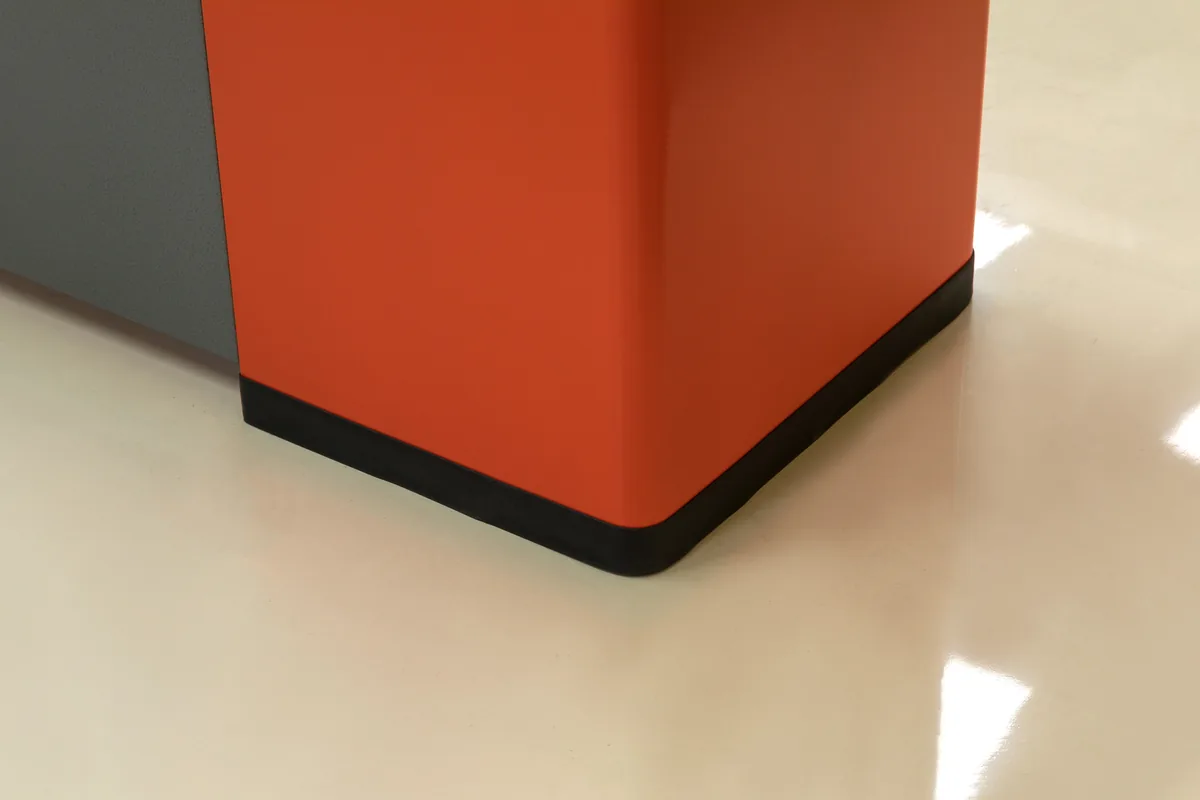

Powder coat over cold rolled steel, dark skirting
The cabinet panels are cold rolled steel under a plastic powder coat, in whichever RAL or PANTONE reference your store works to. The dark skirting along the base is deliberate: that strip is where mops, trolley wheels and pallet trucks land, and it is easier to renew than a coated panel.

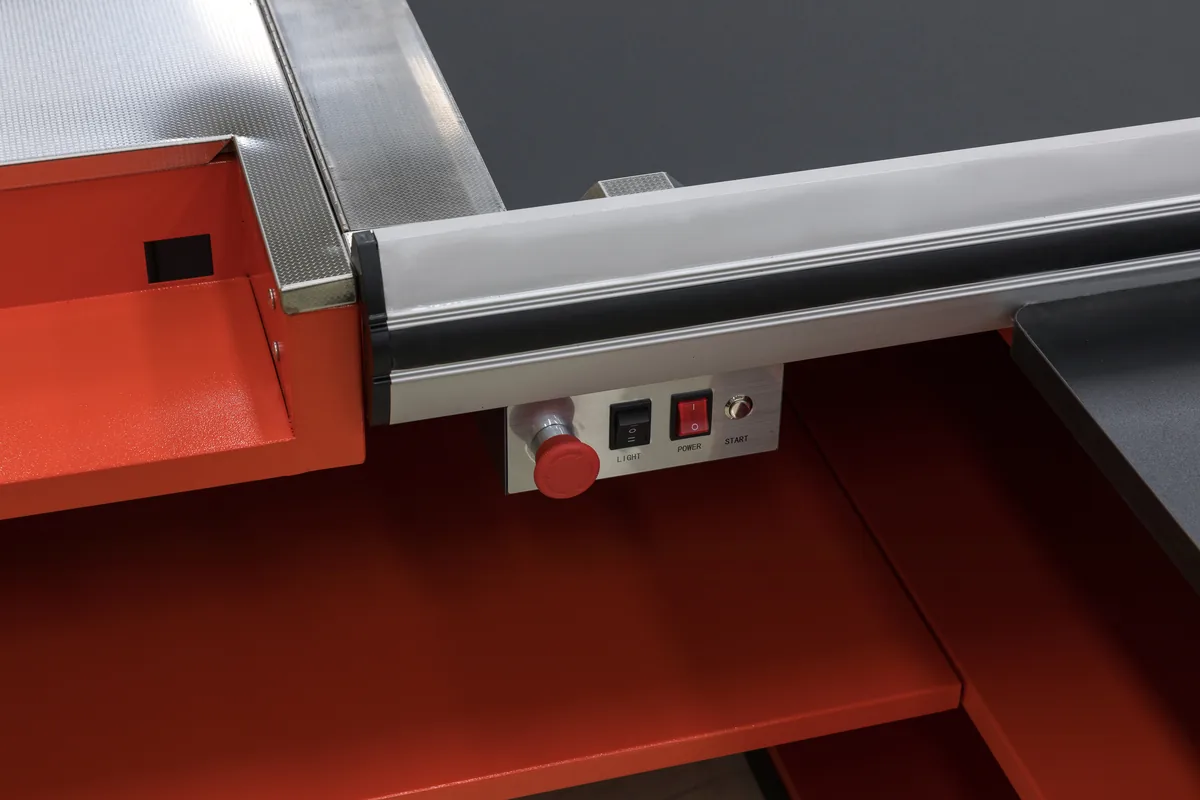

Start, stop and emergency stop under the worktop edge
The belt is driven, and its controls sit under the front edge of the worktop where the cashier's hand already rests. The red mushroom head is the emergency stop. This panel is the one part of the counter that the versions built without a belt do not carry.
Every item on this page is made to order. Send a floor plan, a hand sketch or a photograph of a fixture you like, and we quote against it.
Store fixtures are light for their size, so a container fills up on volume long before it fills up on weight. The number that decides your freight is therefore not what one unit weighs — it is what shape the goods are in when they go through the container door. Everything we build leaves in one of three shapes, and which one it is changes the arithmetic completely.
Shelving bays, produce islands and bulk cabinets travel as panels — uprights, shelves, back panels and plinths, strapped flat. They are built up on the shop floor, so the packing list and the assembly drawings travel with the goods.
Trolleys slide into one another and baskets stack. Past the first unit, each extra one adds only its nesting pitch instead of its full length, so the shipped volume ends up a fraction of what the unit count suggests.
A checkout lane is welded, coated and fitted out as one piece, so it is crated whole with padding on the steel. Nothing waits to be assembled at the store beyond levelling it into the lane. It also means the crate is the counter plus a margin, so the length you order is the length that ships.
This model
Packing
Export wooden case
Standard export crate with impact padding on the steel parts, built for the length of a sea passage rather than for a warehouse move.
Per container
Per loading plan
We do not publish a units per container figure, because it moves with the length you order. A 1200 lane and a 2000 lane do not load the same way.
Send us the quantity and the destination port. We come back with a loading plan built on your actual counter length, not on a catalogue average.
Almost nobody buys one checkout counter. A front end is ordered as a set, and these three categories are the ones that come with it most often. Putting them on the same order is also what lets one colour run across the whole front of the store, because it is then one batch of coating rather than three.
They belong to the same part of the floor, and they ship nested, so adding them to a counter order costs far less container volume than the unit count makes it look.
See shopping carts and basketsThe impulse position sits in front of the lanes, so these stands are read as part of the checkout even though they are a separate category on the order.
See promotional standsThe end bays that close off each aisle behind the checkouts are the shelving a shopper sees while queuing, so they carry the same colour and the same shelf finish as the lanes.
See shelving baysHow many of each a store needs is a floor area question rather than a product question, and it is answered store by store on the supermarket layout design page.
Tell us the lane width, how many lanes, and which side the cashier stands on. If you have a drawing of the checkout area, send that instead — a sketch on paper is enough to start a drawing here.
Two things move the price on this counter: how long each lane is, and how many lanes there are. Everything else on this page is already fixed, so those two answers are enough for a first number.
The four that come up on nearly every checkout counter enquiry. If yours is not here, send it with your drawing and it is answered alongside the quotation.
Yes, and it usually has to be. The counter lengths on record across our range are 1200, 1800, 1850 and 2000 mm, in depths from 600 to 1200 mm, all on the same 850 mm worktop height. Those are the sizes that have been built, not a catalogue you have to choose from. Send us the width available for each lane and the counter is cut to it.
Any RAL or PANTONE reference. The cabinet panels are cold rolled steel under a plastic powder coat, so the colour is set at the coating stage rather than picked off a stock list. If the same order also carries shelving, trolleys or promotional stands, one reference is held across all of them, because steel fabrication, woodworking and stainless steel production run in the same plant.
Assembled, in a standard export wooden case, with impact padding on the steel parts. Counters are not knocked down, which is the opposite of how shelving travels. We do not publish a units per container figure, because it moves with the length you order. Send the quantity and the destination port and you get a loading plan worked out on the real sizes.
The counter is crated whole with the packing list and the assembly drawings in the case, labelled by type, quantity and manufacturer, so your fitter can set the lane out without waiting on us.
