Reinforced Deck
Load rated
The deck is reinforced rather than simply thicker. Where the reinforcement sits depends on the load pattern, which is why we ask what you are actually moving.
Reinforced deck · large castors · back of house

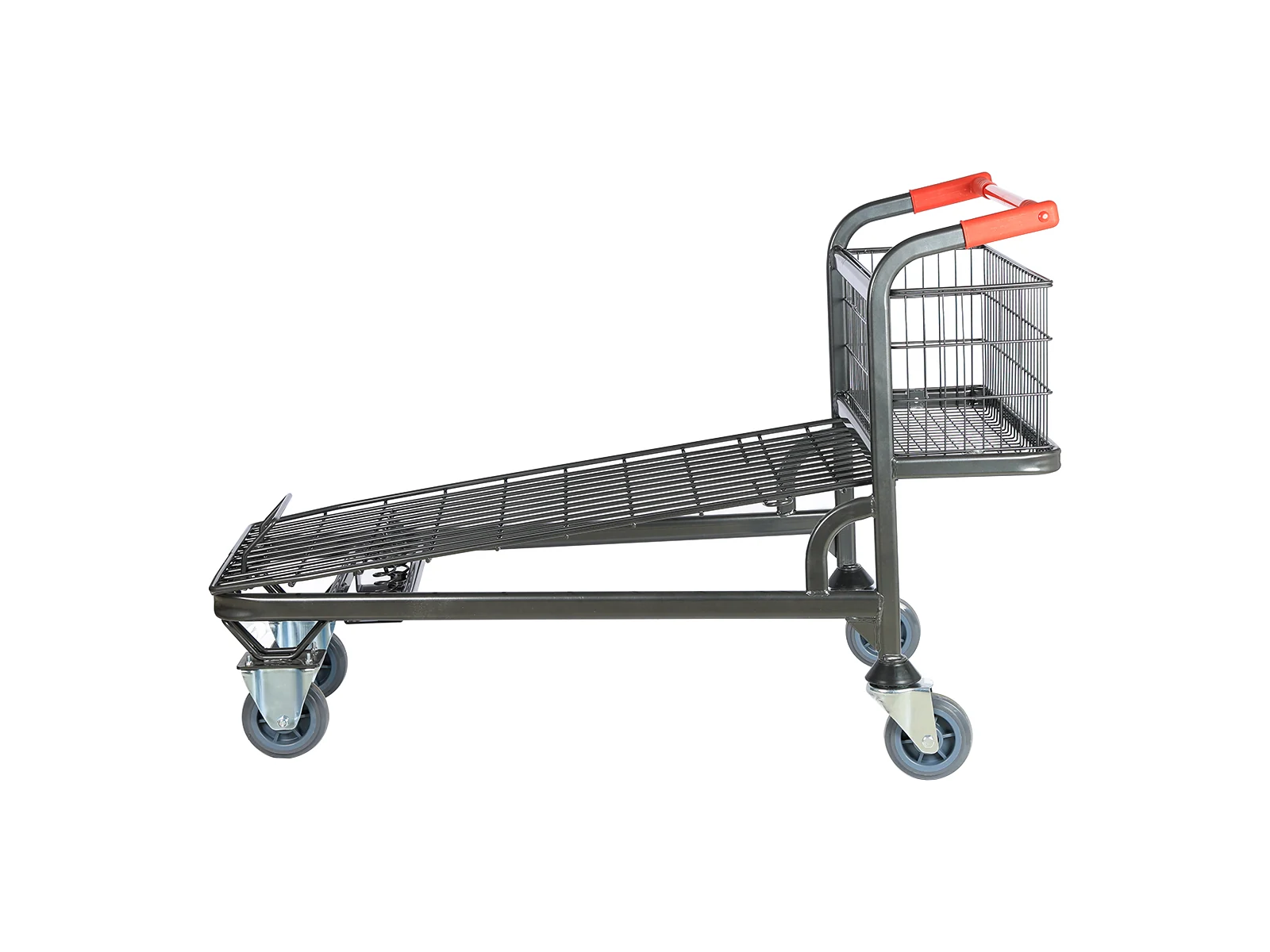

The heavy end of the flatbed range: a reinforced deck on large castors, for the loads that flat-spot a standard trolley within a month.

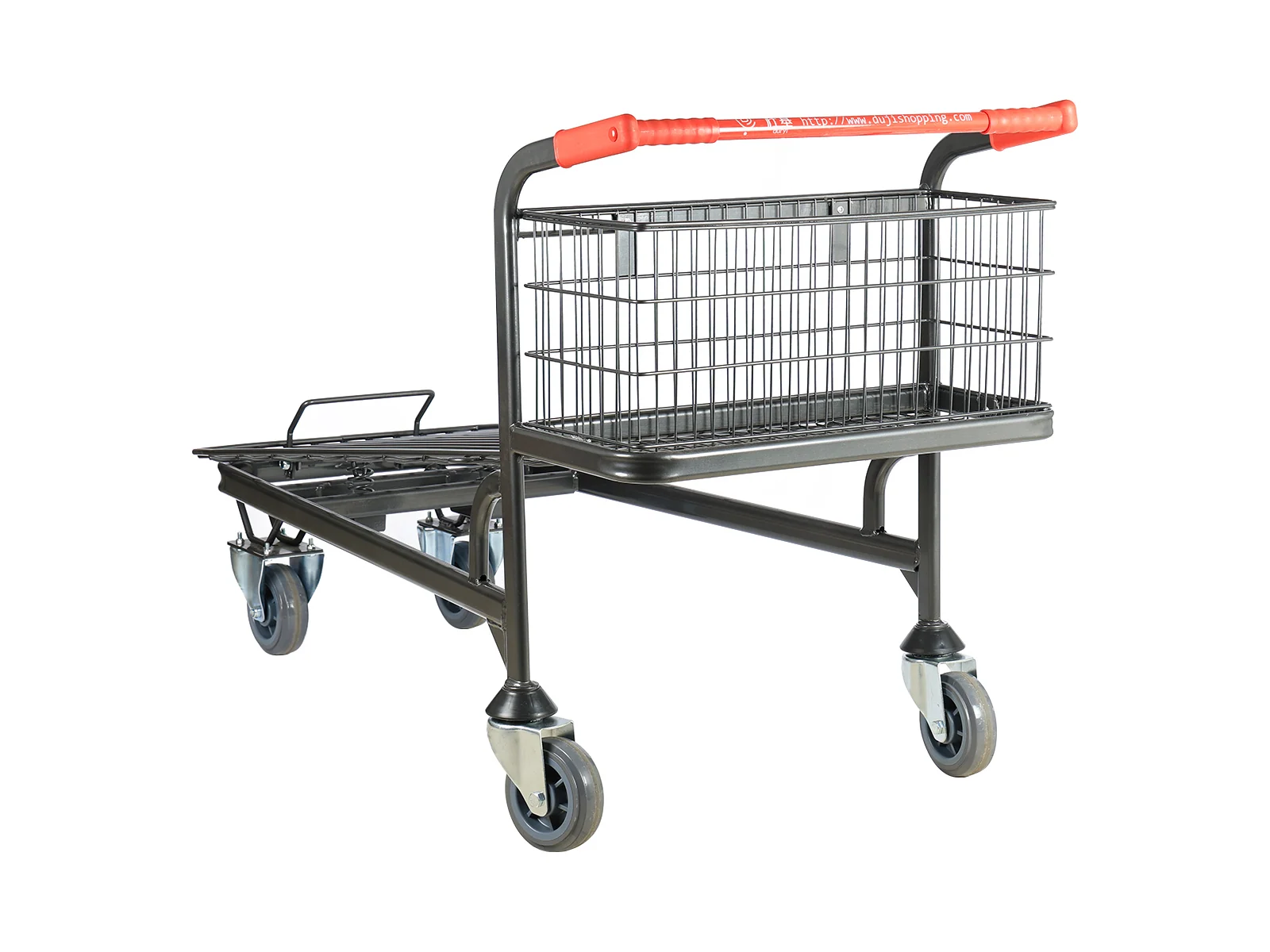

Studio angles on white, with close-ups below.
There is a load above which a standard flatbed stops being adequate, and most buyers find it by breaking one. Large castors, a reinforced deck and a frame sized against the actual load are what separate this build from the standard platform trolley, and the difference is entirely underneath where nobody looks at it in a photograph.
Because of that, the specification conversation matters more here than anywhere else in the range. A trolley carrying cartons and one carrying bagged cement look identical and are not the same product, and we would rather ask what you are moving than sell you the wrong one.
The heavy end of the flatbed range: a reinforced deck on large castors, for the loads that flat-spot a standard trolley within a month.
Supermarkets, convenience stores, chain retail and speciality stores. Tell us the store format and the floor area and the specification comes back written against them.
Everything that makes this build heavy duty is underneath the deck. That is where all four look.
Load rated
The deck is reinforced rather than simply thicker. Where the reinforcement sits depends on the load pattern, which is why we ask what you are actually moving.
Load and floor matched

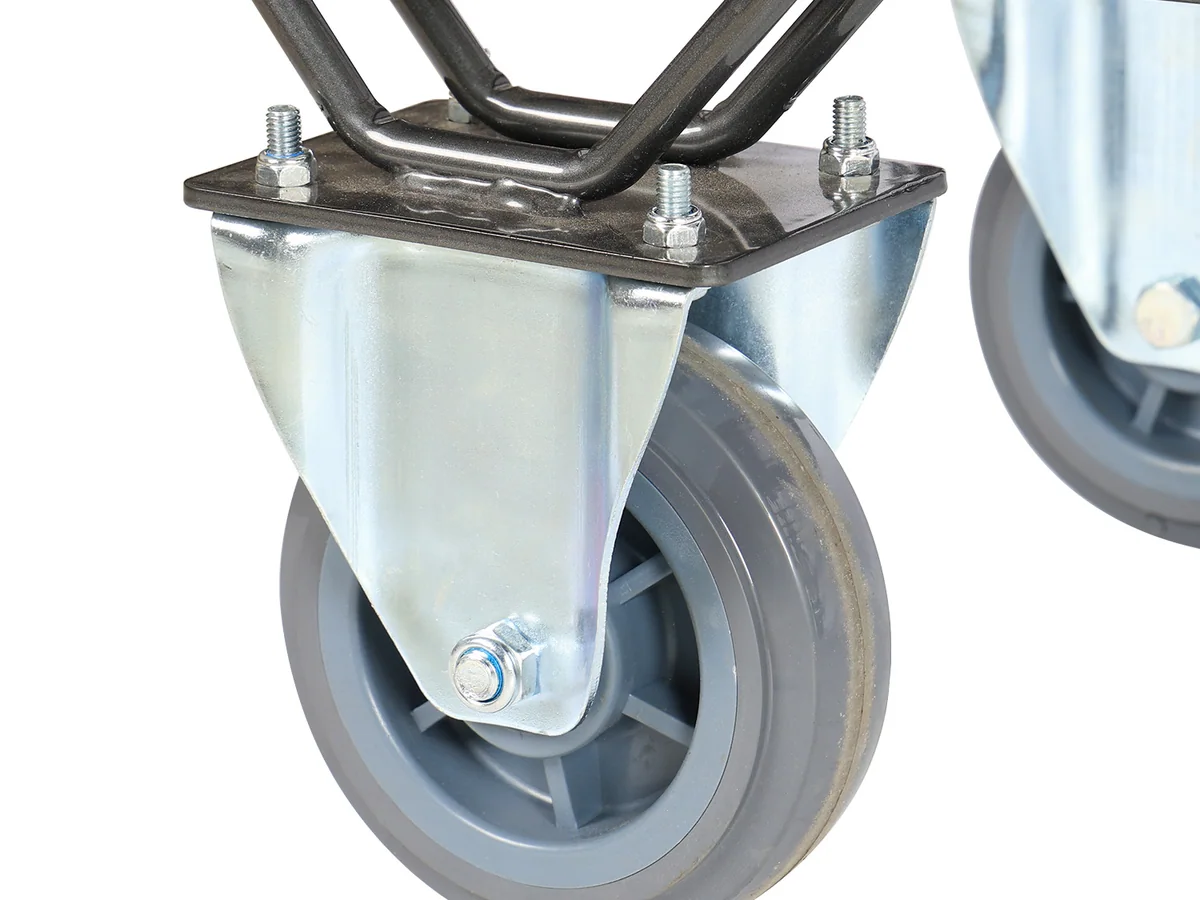

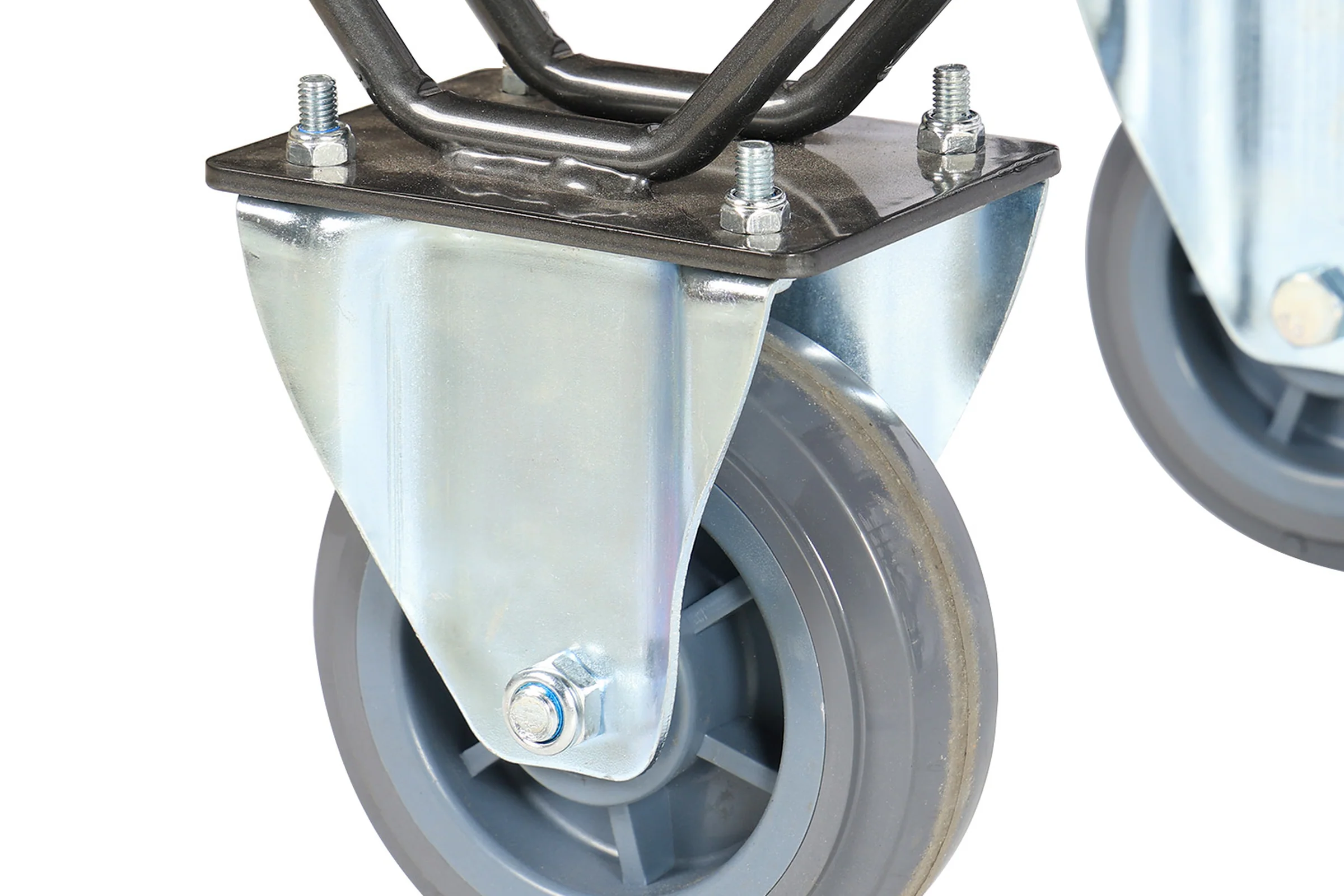

Large castors roll over floor joints and debris that stop small ones, and they resist flat-spotting under a static load. It is the most common failure point on heavy trolleys.
Sized to the load

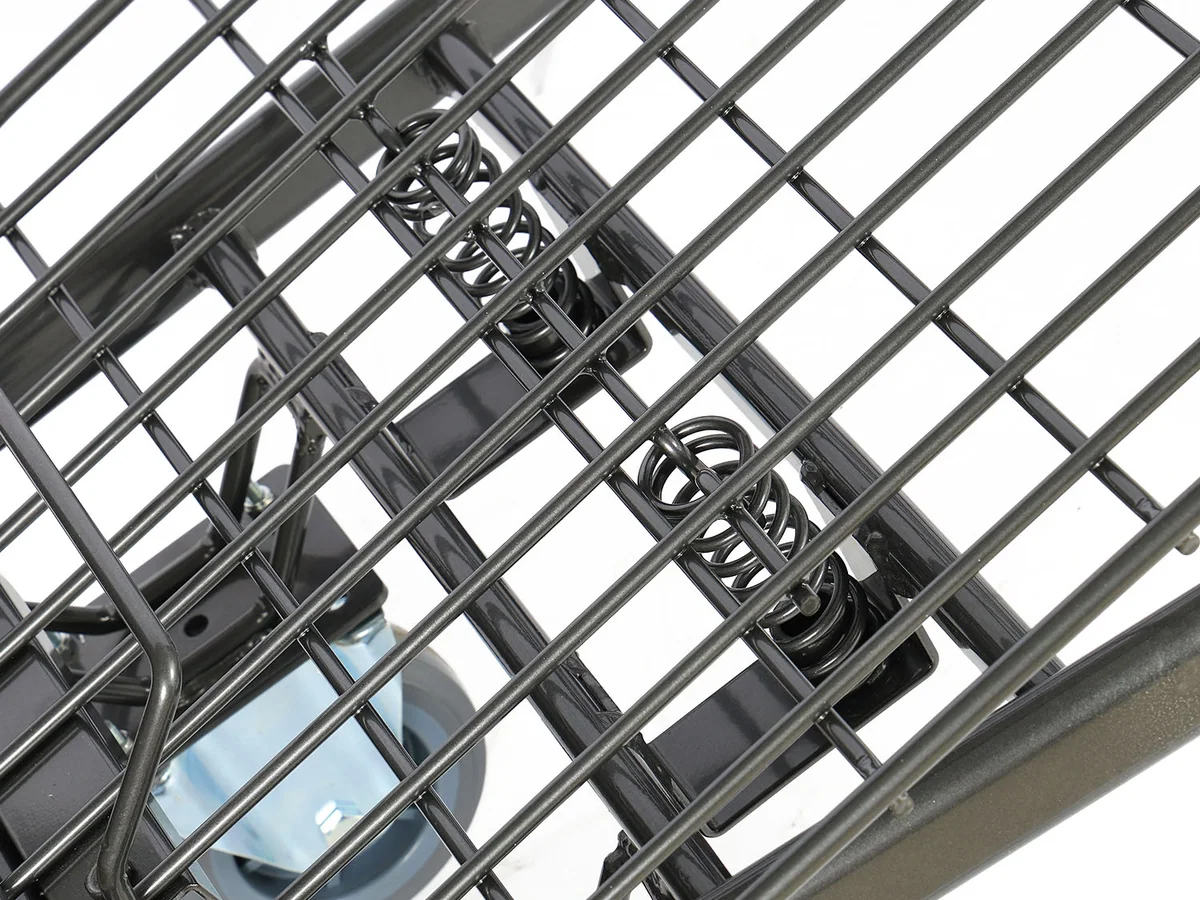

The frame under the deck is sized against the actual load rather than to a catalogue rating. This is the part that decides whether the trolley is still square after a year.
Fixed, braced

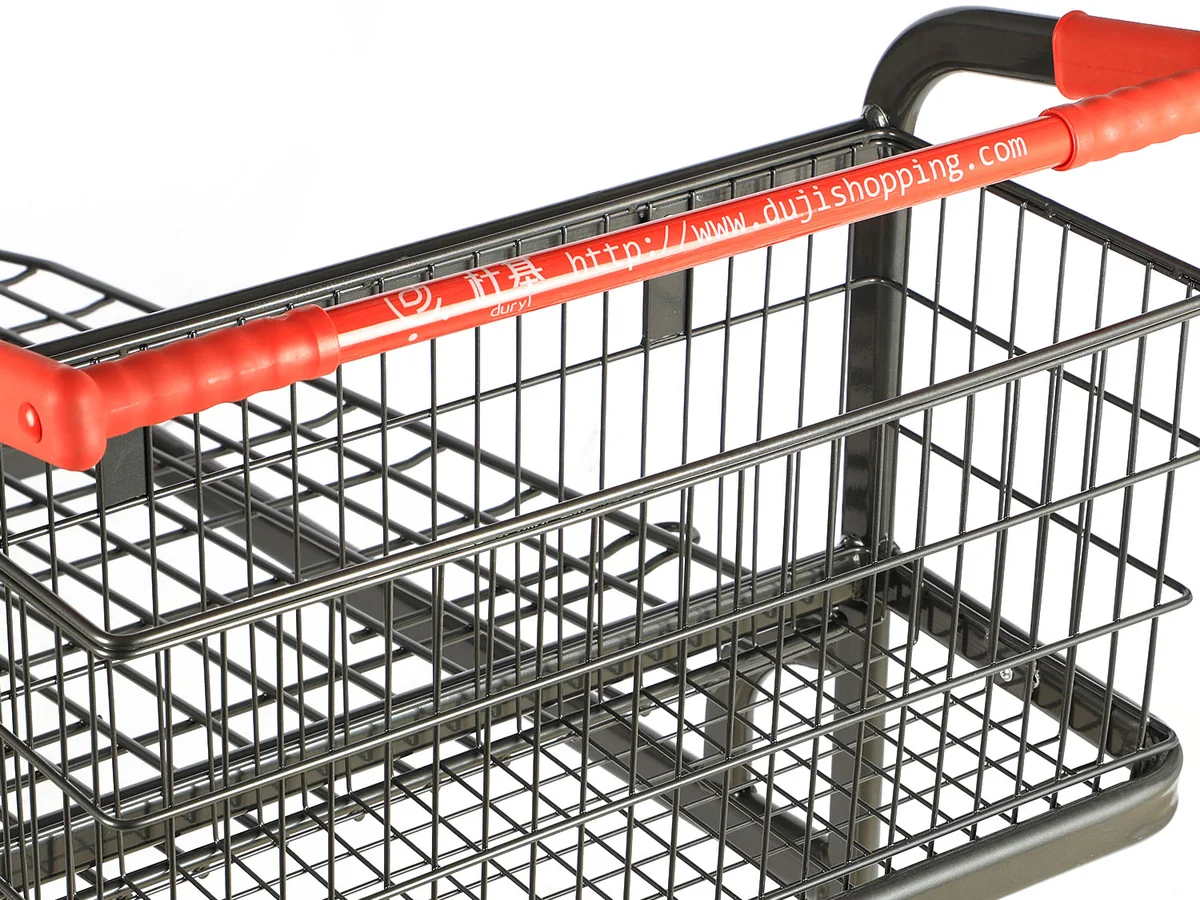

The handle is fixed and braced into the frame. A loaded heavy trolley is steered against the handle as much as pushed by it, and a bolted-on handle works loose under that.
Every item on this page is made to order. Send a floor plan, a hand sketch or a photograph of a fixture you like, and we quote against it.
Store fixtures are light for their size, so a container fills up on volume long before it fills up on weight. What decides your freight is not what one unit weighs — it is what shape the goods are in when they go through the container door. Everything we build leaves in one of three shapes.
Shelving bays, produce islands and bulk cabinets travel as panels — uprights, shelves, back panels and plinths, strapped flat with bubble wrap on every component. They are built up on the shop floor, so the packing list and the assembly drawings travel with the goods.
Trolleys slide into one another and baskets stack. Past the first unit, each extra one adds only its nesting pitch instead of its full length, so the shipped volume ends up a fraction of what the unit count suggests.
This model
A checkout lane is welded, coated and fitted out as one piece, so it is crated whole with padding on the steel. Nothing waits to be assembled at the store beyond levelling it into the lane, and the crate is the counter plus a margin.
Trolleys are the one category where the unit count and the shipped volume are almost unrelated. They nest, so past the first unit each extra one adds only its nesting pitch instead of its full length — which is why a container of trolleys holds several times what the same container of assembled counters would. We do not publish litre capacities for this range. The figures circulating for it came from an old third-party listing rather than from our own production records, and they are being confirmed with the factory before they go on the site.
A trolley bay is part of the front of store, and what it stands next to decides how well it works.
The lane length has to leave room for a loaded trolley to turn out of it, which is a dimension worth checking before either is ordered.
See checkout countersAisle width is set by two loaded trolleys passing, so the shelving depth and the trolley size are one decision rather than two.
See shelving baysA promotion square at an aisle head is the first thing a trolley has to get past, and the clearance between them is worth drawing.
See promotional display tablesHow many of each a store needs is a floor area question rather than a product question, and it is answered store by store on the supermarket layout design page.
Tell us the heaviest load and the floor. Everything about this build follows from those two.
Send the heaviest load you will put on it and describe the floor it runs on. Those two answers set the deck, the frame and the castors together.
The four that come up on nearly every enquiry for this build. If yours is not here, send it with your layout and it is answered alongside the quotation.
It is specified against your goods rather than sold at a rating. Send the heaviest load you intend to move and we will tell you whether this build covers it or whether you need something else.
They roll over floor joints and debris that stop small ones, and they resist flat-spotting when a loaded trolley stands still. Flat-spotted castors are the most common early failure on heavy equipment.
It can, though it is louder and less manoeuvrable than a shopper trolley. Warehouse clubs use them front of house successfully; a conventional supermarket usually should not.
They can be specified, and for loose or bagged goods they are worth having. Tell us what you carry — stacked cartons often do not need them and gates get in the way of loading.
