The Step
Two levels
The back level steps up so the rear sacks are visible over the front row. On a flat platform the back half is invisible, which on a fixture holding one line in different sizes means half the range is hidden.
Sack display · stepped platform · curved end

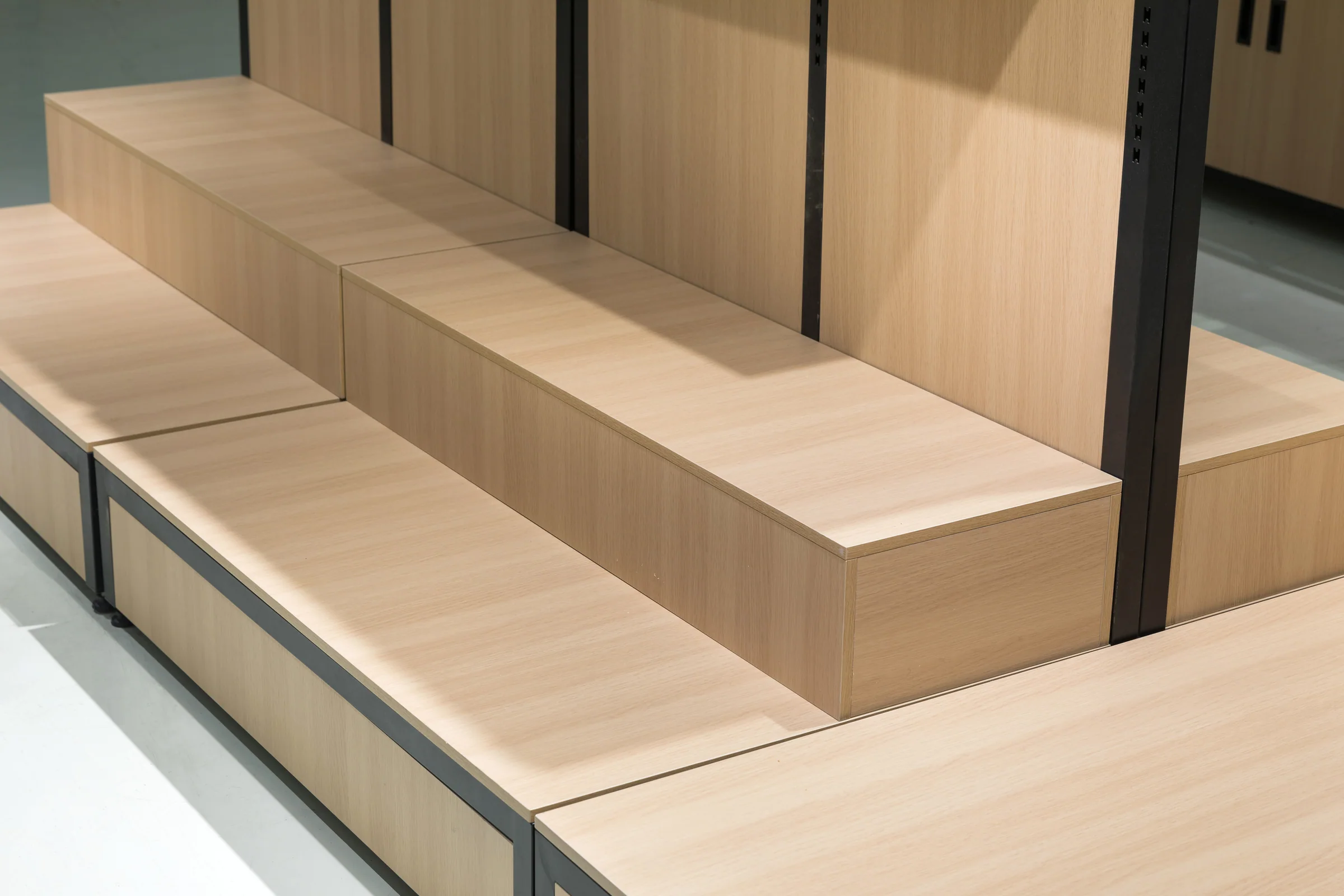

A low stepped platform built for what a shelf cannot hold: stacked sacks of rice and grain, at a weight and a shape no bay was designed for.

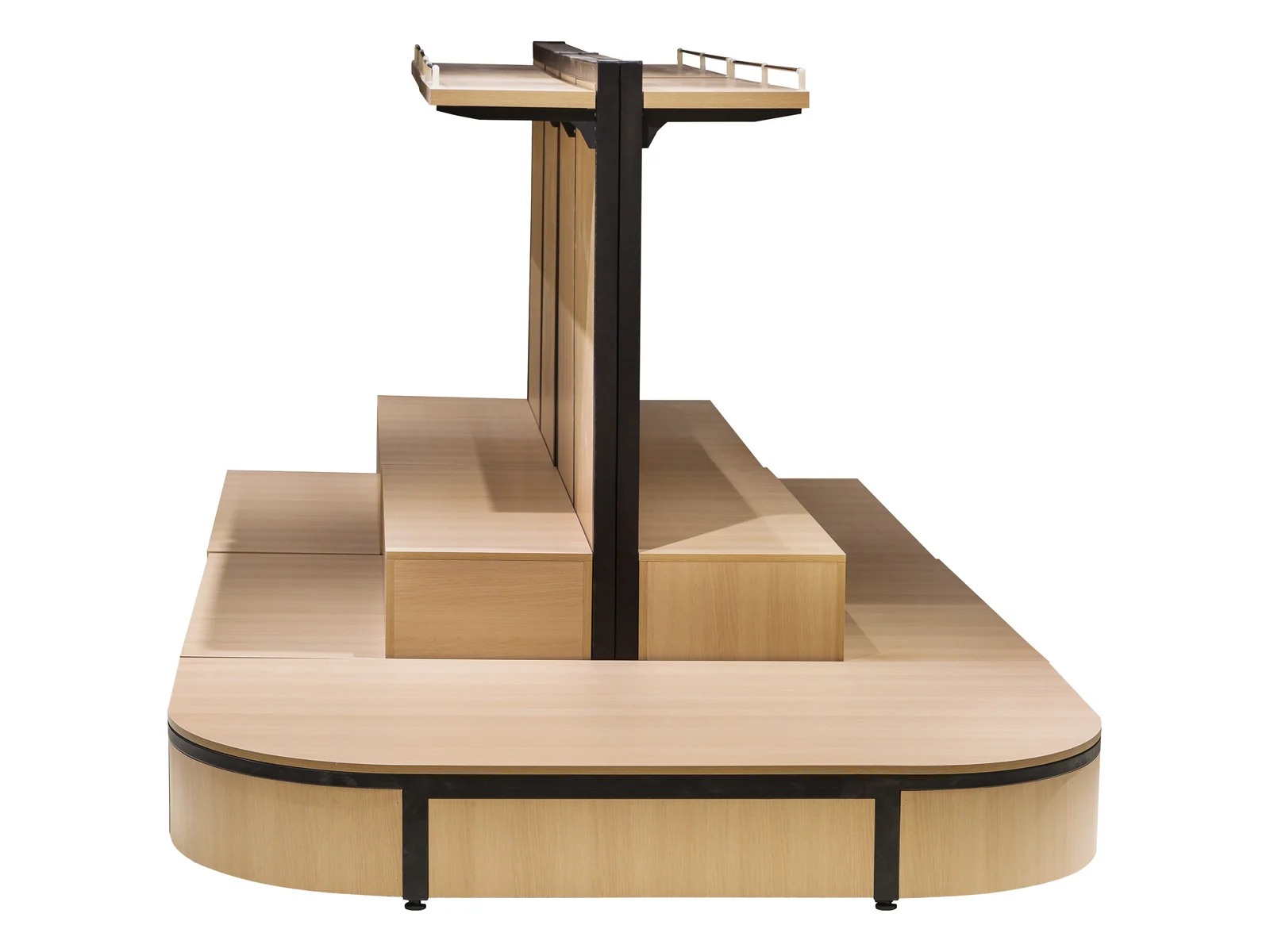

Studio angles on white. The step, the curved end, the deck and the frame are photographed below.
A 25 kg rice sack does not belong on a shelf. It is heavy enough to bend one, awkward enough that lifting it down is a two-hand job, and shaped so it slumps against anything vertical. Sacks want a low platform they can be stacked on and dragged off, which is what this is: two stepped timber levels with a curved end, low enough to load from a pallet truck.
Loading is the specification that matters here and it is set against your actual sack weight rather than to a general figure. That is a real question we ask on every enquiry, because a platform built for 10 kg bags and one built for 50 kg bags are not the same fixture even though they look identical in a photograph.
A low stepped platform built for what a shelf cannot hold: stacked sacks of rice and grain, at a weight and a shape no bay was designed for.
Supermarkets, convenience stores, chain retail and speciality stores. Tell us the store format and the floor area and the specification comes back written against them.
This fixture is bought on what it will carry, so two of these four are structure rather than finish.
Two levels
The back level steps up so the rear sacks are visible over the front row. On a flat platform the back half is invisible, which on a fixture holding one line in different sizes means half the range is hidden.

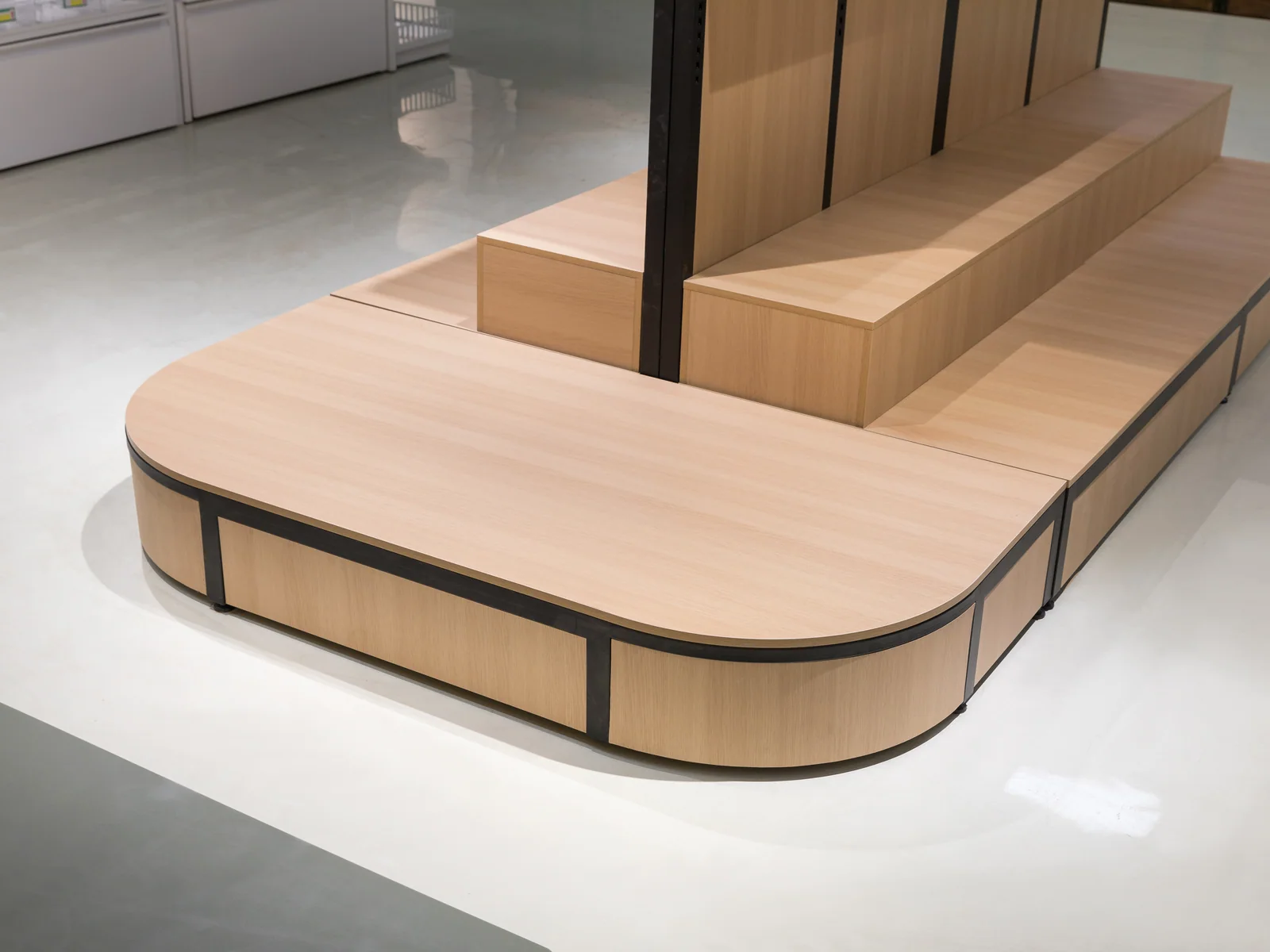

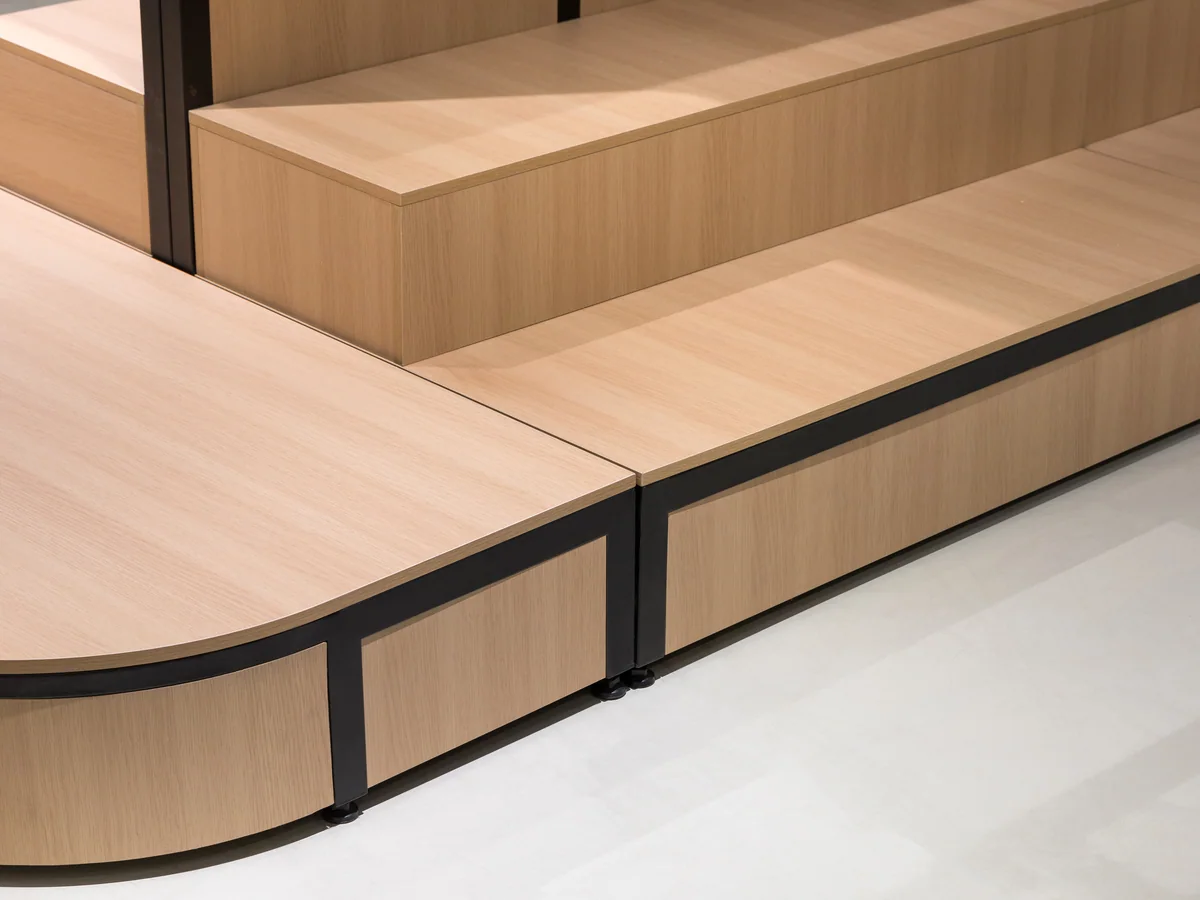

No square corner
The end is radiused. A low platform sits at shin height and a square corner there is the one that gets walked into, which on a fixture this solid is worth avoiding.

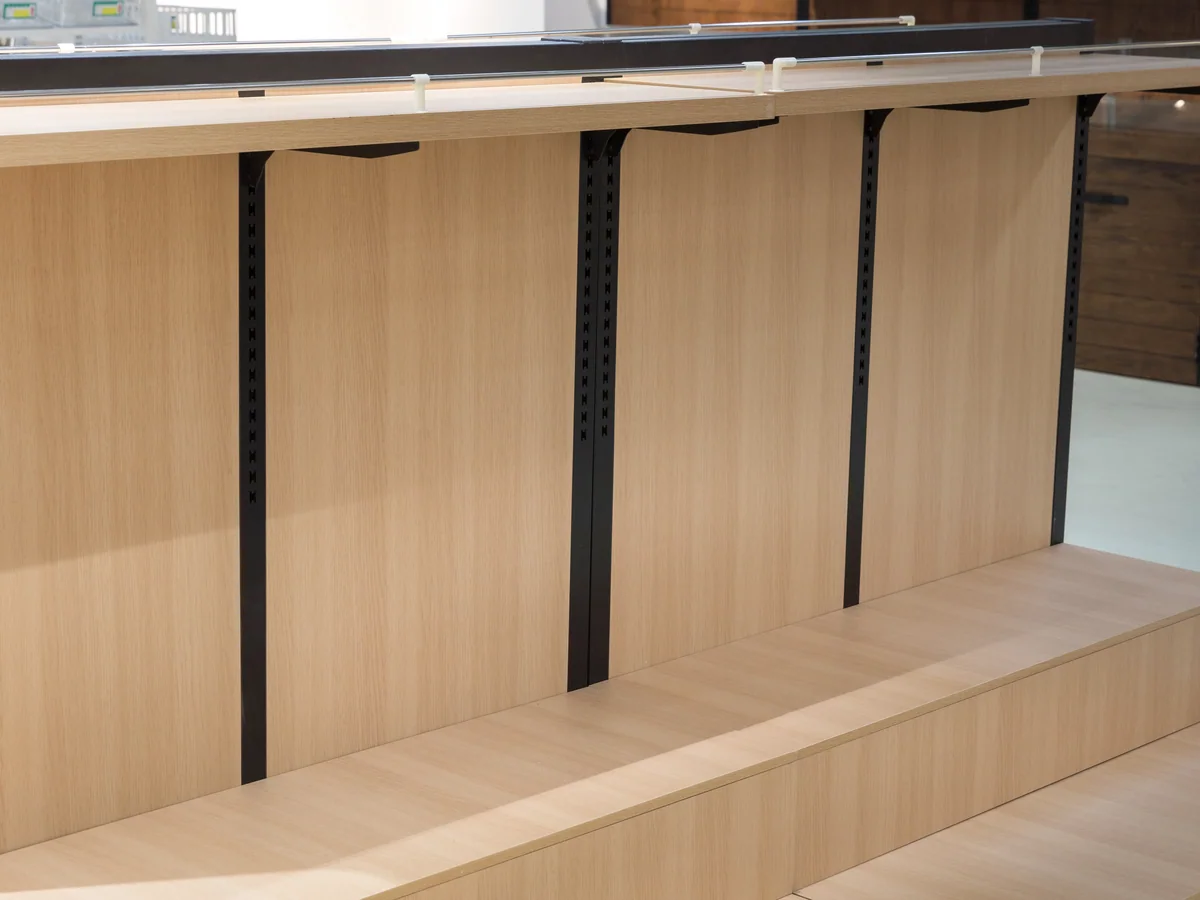

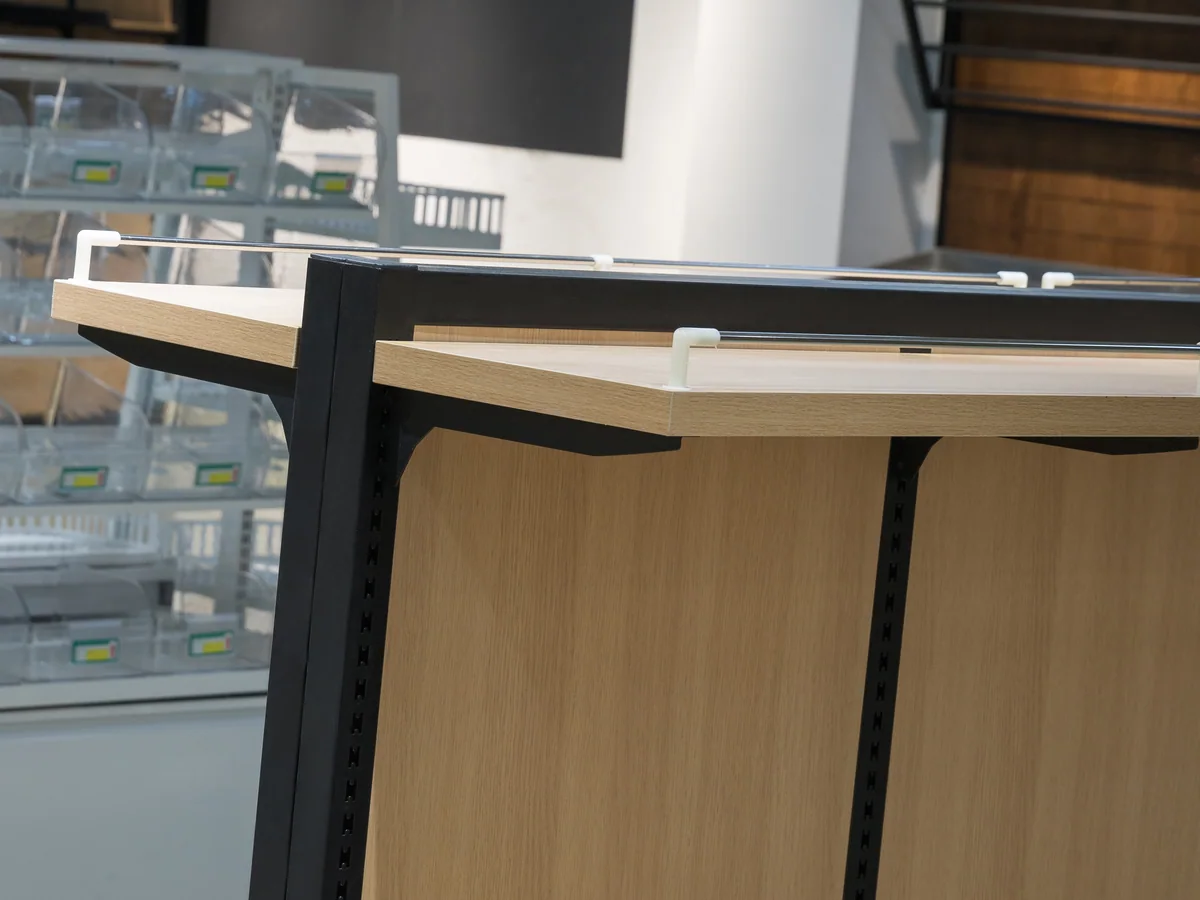

Board over steel
Board deck over a steel frame. Sacks are dragged rather than lifted off, so the deck takes abrasion along its whole surface rather than at points, which is what the loading specification accounts for.
Sized to your sack weight
The frame under the deck is where the loading specification lives. A platform for 10 kg bags and one for 50 kg bags look identical in a photograph and are not the same fixture.
Every item on this page is made to order. Send a floor plan, a hand sketch or a photograph of a fixture you like, and we quote against it.
Store fixtures are light for their size, so a container fills up on volume long before it fills up on weight. What decides your freight is not what one unit weighs — it is what shape the goods are in when they go through the container door. Everything we build leaves in one of three shapes.
Shelving bays, produce islands and bulk cabinets travel as panels — uprights, shelves, back panels and plinths, strapped flat with bubble wrap on every component. They are built up on the shop floor, so the packing list and the assembly drawings travel with the goods.
This model
Trolleys slide into one another and baskets stack. Past the first unit, each extra one adds only its nesting pitch instead of its full length, so the shipped volume ends up a fraction of what the unit count suggests.
A checkout lane is welded, coated and fitted out as one piece, so it is crated whole with padding on the steel. Nothing waits to be assembled at the store beyond levelling it into the lane, and the crate is the counter plus a margin.
Grain racks flat pack as panels, bins and lids, so the container arithmetic runs on compartment count rather than on finished size. Two grain builds are on record — Grain Rack-Y01 in metal sheet with stainless board and Grain Rack-Y02 in 1.5 to 2.5 mm board — and neither is sold in a fixed size. The loading plan is worked from your compartment count and confirmed on the packing list.
Loose grain sits in the dry goods aisle and rarely arrives alone. These three share the aisle with it.
Loose grain and loose dry goods are one department to a shopper, and both want stainless wherever a scoop lands.
See bulk food binsSacked and packeted grain goes on the bays behind the loose fixture, and both carry the same board tone.
See shelving baysRice and grain are promoted on volume, and a square at the aisle head is where a bulk buy actually gets sold.
See retail display tablesHow many of each a store needs is a floor area question rather than a product question, and it is answered store by store on the supermarket layout design page.
Send the sack weight you stock. That is the specification, not the size.
Send the weight of the heaviest sack you stock and roughly how many go on the platform. Those two numbers set the frame gauge, which is what you are actually buying here.
The four that come up on nearly every enquiry for this build. If yours is not here, send it with your layout and it is answered alongside the quotation.
That is specified against your actual sacks rather than quoted as a general figure. Send the heaviest sack weight and roughly how many go on it, and the frame gauge comes back on the quotation.
It is built low for exactly that. Tell us the truck you use, because the deck height and the clearance underneath have to suit it — a platform that a truck cannot reach is a platform staff load by hand.
It depends whether your sacks are dusty or wet. Dry sacked rice on a board deck is fine; anything damp or leaking wants stainless, and that is a per store plan decision against your range.
It can, but each level up makes the sacks harder to lift and the platform harder to load. Two is where most stores land, and past three it stops being a sack platform and becomes shelving that sacks do not suit.
